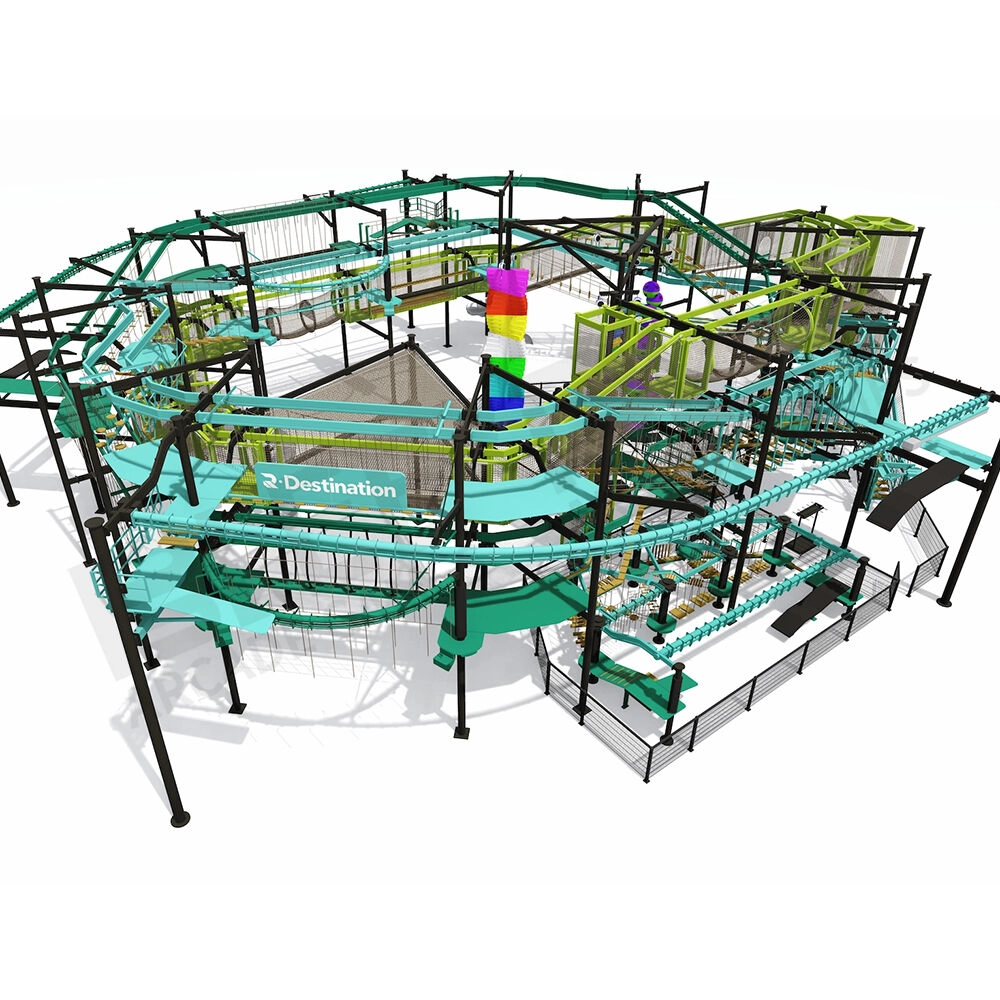

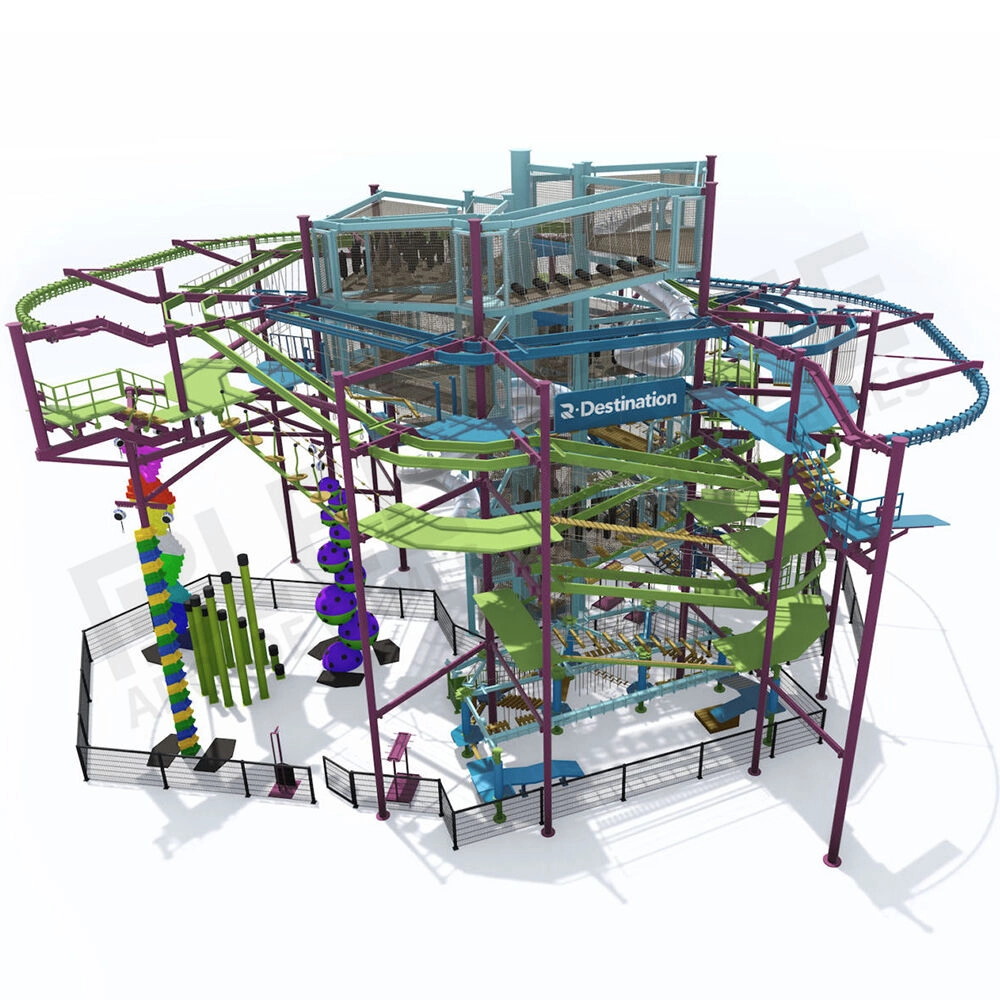

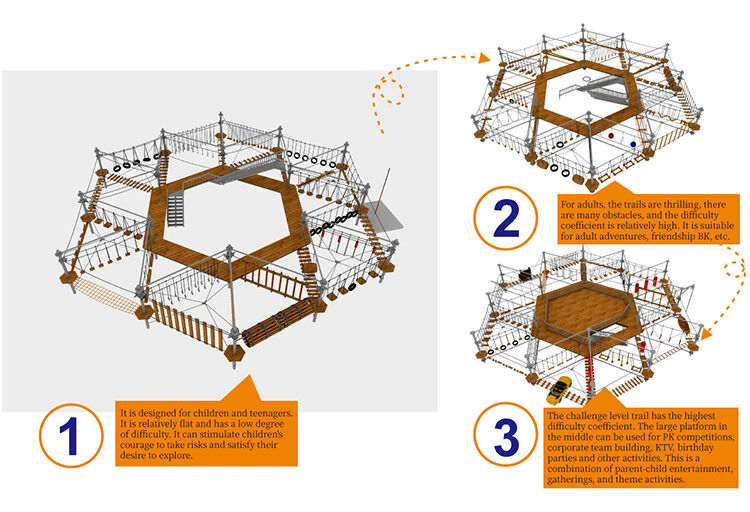

Exploration Tower Design: The Exploration Tower uses a unique structure, with obstacles of varying difficulty and style set up between steel or wood columns. This design makes the tower stable and ensures the space is used well. There's also a viewing platform that can be 80-200 square meters, perfect for dining, lounge areas, coffee bars, or pubs. The platforms can hold 30-80 people each, thanks to the support rods underneath.
The project considers both able-bodied and disabled participants by using an accessible protection system, making it a great place for individuals, groups, or families to enjoy an exciting adventure.
| 1.4m, 4m, 4.8m, 6m, 8m, 10m (free fall platform) | |
| Game line | Child line, parent-child line, adult line |
| Material | Plastic parts: LLDPE imported from Korea, high temperature resistance, innocuity. |
| Iron parts: galvanized steel pipes, wall thickness of 2.2 mm conforming to the | |
| National standard G B/T3091-2001, | |
| Standard feature | 1.Steel climbing stair |

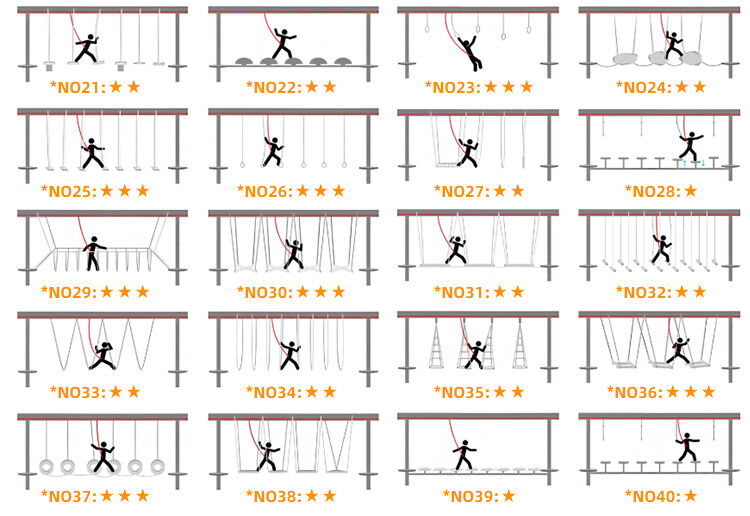

| 2.Elements or ropes activities | |
| 3.Appropriate amount of harnesses for kids or adults. | |
| 4.Appropriate amount of Lanyards. | |

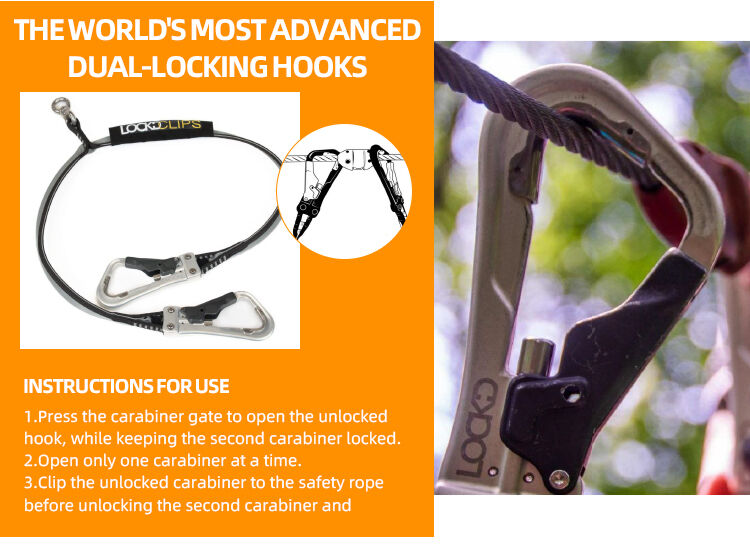

| 5.Appropriate amount of Triple Step Karabiners. | |
| 6.Operator training video or manuals | |
| 7.Platform height – Customized or designed as per your site’s height by us | |
| Optional | 1.Customerized color for steel frame |
| 2.Themes – Tropical, pirate, Jurassic | |
| 3.Yellow or Orange static rope | |
| 4.Sun shades | |

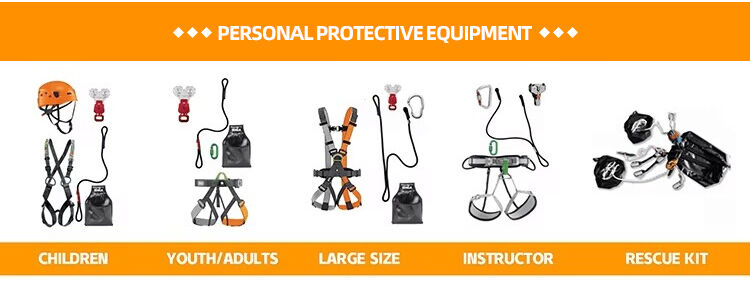

| 5.Additional PPE | |
| 6.Installation Guide at your site | |
| 7.Operator trainer training at your site | |
| 8.Maintenance and inspection training at Development after 1 year of course operation | |
| Delivery time | 30 work days |
| Payment terms | T/T 30% deposit before production, 70% balance upon the copy of B/L |
| Package details | Air bubble and wood box |
| Warranty | 1 year on steel frame |
| Service | 1.Business Plan; 2.Concept plan or design ; 3.Production |
| 4.Installation Video/Manual; 5.Training Manual ;6.Maintenance & Inspection Manual | |
| Certificate | CE & ISO 9001:2008, ISO 14001:2004 , ISO 18001:2007 |
| Advantage | 1. High Strength steel frame； 2. Low investment, High capacity and throughput； 3. Continuous safety belay track system; 4. Proven safety record； 5. Interchangeable elements； 6. Expandability； 7. Competitive and interesting； 8. Site Flexibility； |
